Standardized Non-Rising Stem Slide Gates

SerieS
ConfigurationS22-P

Series S Slide Gates have the exact same design as the Series 20. Standardized square gates are kept in stock (316/316L stainless steel) in nominal sizes ranging from 8in to 48in. (200mm to 1,200mm) and ready for delivery when needed.

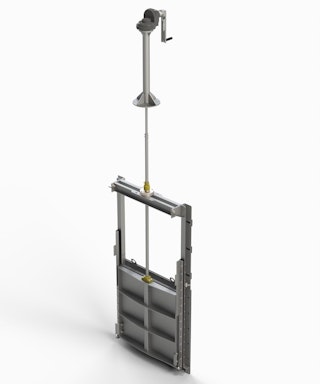

This is a Self-Contained Frame Gate with a non-rising stem design and pedestal mounted actuator.

This configuration is useful in situations where a pedestal mounted actuator is desired, but the ceiling clearance is limited and does not provide space for rising stem, or when transmitting the operating forces to the surrounding structures must be avoided.

Pedestal mounting brackets are available for open top situations.

When ceiling clearance is available, rising stem configuration S11-P is recommended to facilitate operation and maintenance.

Serie s config s22 p

Information

These gates will provide long lasting performance in submerged applications, whether in water or wastewater. The strength of the design combined with the flanged back frame and innovative sealing system will provide unsurpassed leakage performance. Gates provide sealing on both sides, as well as top and bottom, with pressure coming from either the seating or unseating direction.

All gates are made with high quality materials, such as 316/316L or 304/304L grade stainless steel and virgin UHMWPE, ensuring the best corrosion resistance for a long life in the toughest environments with virtually no maintenance required.

These wall mounted gates have been designed for contractors and are easy to install with the use of the thick wall gasket and standardized components. Self adjusting seals do not require any field adjustment.

Guaranteed maximum leakage rate: 0.04 gpm/ft of sealing perimeter (only 40% of the maximum allowed by AWWA C561-14. Lab tests have shown that the sealing performance was maintained even after 25,000 complete operating cycles. The gates never need to be exercised and will remain easily operable even after very long periods of inactivity.

Buy this product

Product options

Tool tips dimension
Tool tips operateurs
Tool tips support mural

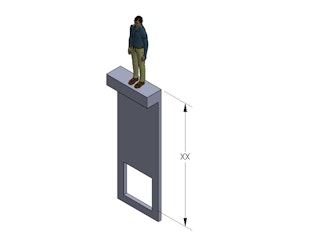

Tool tips distance plancher
