Rectangular Flap Gates

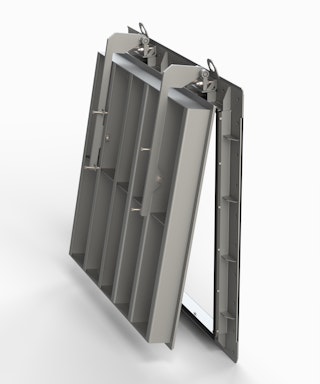

Serie70

Fontaine-Aquanox SERIES 70 have been designed with contractors in mind and are very easy to install with the use of the thick wall gasket and standardized components. Many different mounting options are offered to match the specific needs of each application.

Serie 70

Information

The Fontaine SERIES 70 is the simplest way to prevent flows of water from returning back into rectangular wall openings. The gate design is such that whatever the size, a small flow will open the gate in negative pressure but it will remain watertight for positive pressure. The flap can be adjusted to open under a specific head of water since its adjustable hinges can modify the force needed to push the flap

The hinges of these flap gates use a self-lubricating UHMWPE bushing to prevent metal-to-metal contact, thereby reducing friction and easing the operation. Even if the flap gate is not used for a long period of time, there is no risk that the hinges will rust or seize.

A resilient lip seal is used to achieve low leakage between the frame and flap. All our Flap Gates are made with high quality materials, such as 304L or 316L grade stainless steel, ensuring the best corrosion resistance for a long life in the toughest environments with virtually no maintenance required.

Buy this product

Get a quote

Email us at info@iseaquanox.com or contact your local representative to obtain a quotation.

Technical documents
